Our Products

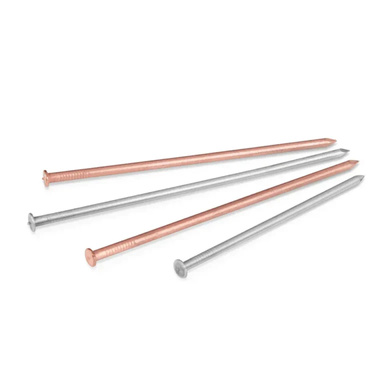

CD Weld Pins

Capacitor Discharge (CD) Weld Pins enable fast, strong welding onto sheet metal using CD equipment, securely fastening insulation materials without surface distortion. Available in various lengths and diameters, they’re ideal for HVAC, ductwork, enclosures, and metal panels requiring efficient, permanent bonds.

Category Details
Material Options Low Carbon Steel; Stainless Steel; Aluminium
Surface Finish Copper-Coated; Galvanized
Pin Diameters 3.0 mm - 6.0 mm
Pin Lengths Customizable as required

Cup Head Pins

Cup Head Pins offer permanent insulation fastening with a pre-attached washer for quick installation and robust holding power. Compatible with capacitor discharge or arc welding machines, they're perfect for high-volume uses in shipbuilding, HVAC ductwork, and large industrial insulation systems.

Category Details
Material Options Stainless Steel; Mild Steel
Surface Finish Nail: Zinc Plated or Copper Plated;
Head: Zinc Plated
Head Diameters 25 mm; 30 mm; 38 mm
Pin Diameters 2.0 mm; 2.7 mm; 3.4mm
Pin Lengths 55mm, 80mm, 125mm and 180mm
(Various lengths available as per requirement)
Insulation Type Under head paper insulation and heat shrunk polyolefin sleeve (partial shank) insulation available

Insulation Dome Caps

Engineered to cover the tips of weld pins, hangers, or lacing anchors, Dome Caps improve both safety and durability. They protect against injuries, reduce insulation wear, and add moisture resistance, extending system life. Available in multiple materials and finishes, they also enhance the appearance of insulation installations in industrial and commercial settings.

Category Details
Material Options Mild Steel; Stainless Steel; Aluminum;
Surface Finish Polished; Zinc Plated; White/Black Spray
Available Colors Silver; White; Black
Washer Type Round Washer with Dome Cap
Dome Cap Heights 7 mm; 8 mm; 10 mm; 12 mm
Dome Cap Diameters 22 mm; 25 mm; 28 mm; 30 mm; 38 mm
Center Hole Sizes 2.0 mm; 2.7 mm; 3.0 mm; 3.4 mm

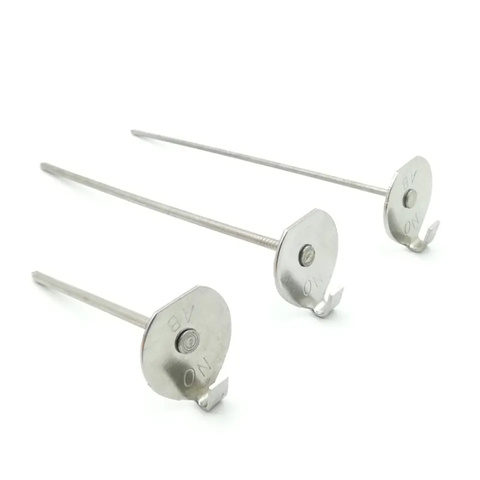

Stainless Steel Lacing Anchors

Engineered to secure insulation on high-temperature equipment, ducts, and pipelines. Made from stainless steel for superior corrosion resistance and strength, they are used with lacing wire or hooks to hold insulation mats and blankets in place. Suitable for power plants, refineries, petrochemical, and marine applications.

Category Details
Material Options 304 Stainless Steel; Low Carbon Steel (optional)
Surface Finish Stainless Steel: Polished; Low Carbon Steel: Galvanized
Head Type Round (Rectangular available on request)
Pin Diameters 14 Gauge (2.0 mm); 12 Gauge (2.7 mm)
Pin Lengths Customizable as required

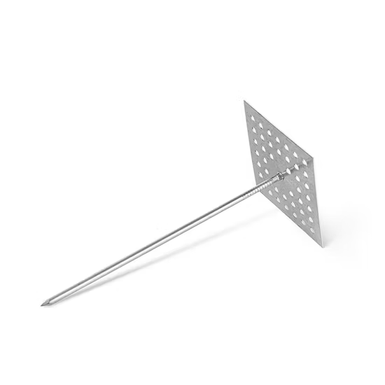

Perforated Base Insulation Pins

A versatile fastening system with a pin mounted on a perforated metal base, designed for flexible installation using adhesives, screws, or nails. Suitable for ceilings, walls, and ductwork, they securely hold a wide range of insulation materials. With strong holding power and durable construction, they are ideal for both commercial and industrial insulation applications.

Category Details
Material Options Stainless Steel; Mild Steel
Surface Finish Polished or Galvanized
Head Size Customizable as required
Pin Diameter 12 Gauge (2.7 mm) – standard
Pin Lengths Customizable as required

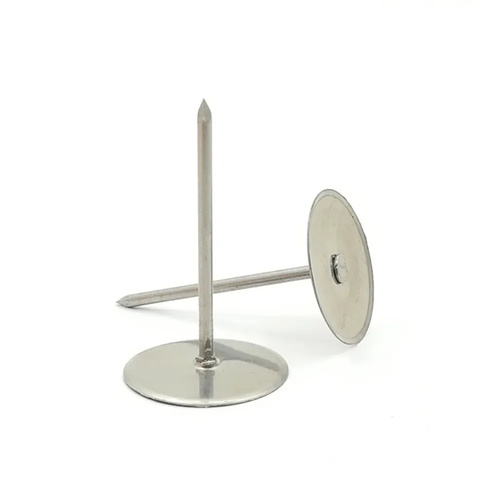

Quilting Pins

Secure insulation blankets and boards with ease. Made from stainless or low carbon steel, they offer strength, corrosion resistance, and reliable fastening with self-locking washers—ideal for industrial and marine insulation applications.

Category Details
Material Options Stainless Steel; Low Carbon Steel
Surface Finish Natural, Galvanized, or Copper-Coated
Pin Lengths Multiple lengths to suit insulation thickness

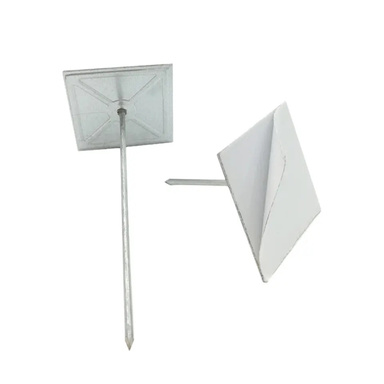

Self Adhesive Insulation Pins

A non-weld solution for fastening insulation to walls, ducts, ceilings, and other non-weldable surfaces. Featuring a strong peel-and-stick adhesive backing, these pins allow clean, simple, and cost-effective installation without special tools. Insulation is secured by pressing onto the pin and locking with a washer. Commonly used in HVAC ducting, acoustic, and lightweight thermal insulation applications.

Category Details
Material Options Stainless Steel; Galvanized Steel
Surface Finish Polished or Galvanized
Head Size Customizable as required
Pin Diameter 12 Gauge (2.7 mm) – standard
Pin Lengths Customizable as required

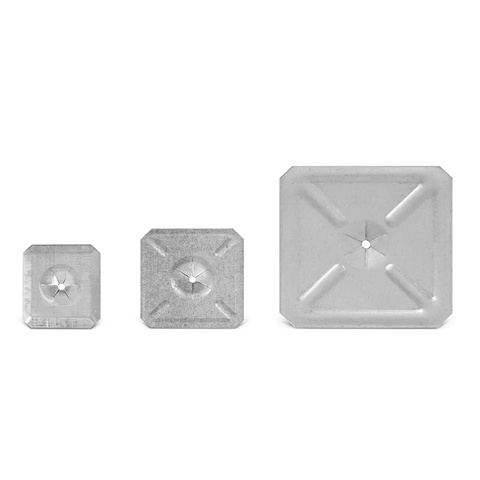

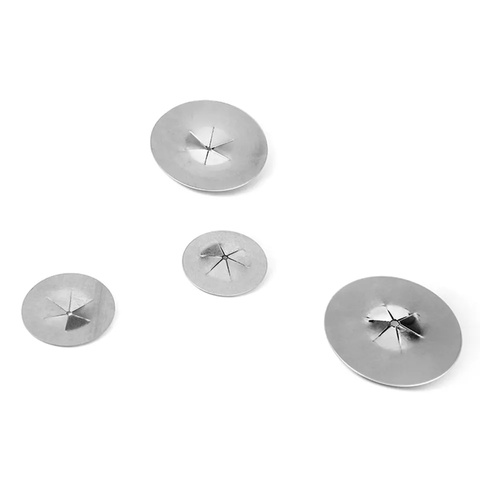

Self Locking Washer

Designed to secure insulation onto pins and hangers, Self-Locking Washers lock firmly in place, resisting loosening from vibration or thermal expansion. Available in round, square, and flanged styles, they are manufactured from stainless steel, galvanized steel, or aluminum—providing a reliable fastening solution for HVAC systems, pipelines, and industrial insulation applications.
